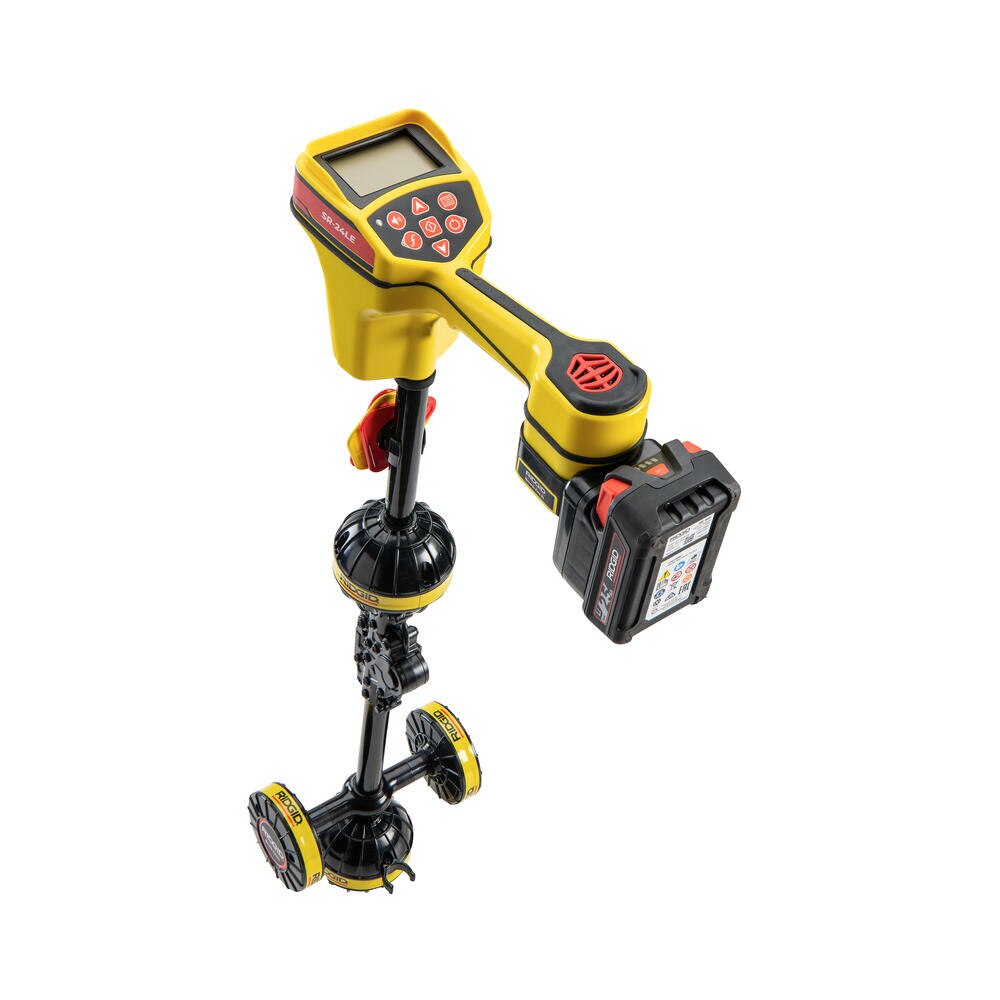

Ridgid 76813 SR-24LE Utility Locator

INCLUDES:
• (1) SR24 Utility Locator
• (1) SeekTech Battery Adapter

FEATURES:
• Intuitive mapping display shows the utility's estimated position, direction, and depth, while audio cues guide the operator over the utility
• Omnidirectional antenna array captures the complete signal field for greater speed and accuracy
• Gradient antenna pair provides left/right guidance for centering over the signal
• Includes SeekTech Battery Adapter for powering SR-24LE with a RIGID 18 V LI-Ion batter for long-lasting power in the field
• Provides the degree of tilt of the camera head while in-pipe and displays it on a TruSense enabled monitor*
• Bluetooth Low Energy technology connects to mobile device
• Foldable mast for easy transport and storage

SPECIFICATIONS:
• Omnidirectional Mapping Display: Yes
• User-Defined Frequencies: Yes up to 35 kHz
• Number of Active Line Trace Frequencies: All up to 35 kHz
• Sonde Frequencies: All up to 35 kHz
• Passive Search: OmniSeek (searches all passive bands at once)
• Depth: Continuous
• Weight W/Batteries: 4.1 LB/1.9 kg
• Bluetooth: Yes
• Power Source: 18V/4 C-cell


The RIDGID SR-24LE is a precision utility locating instrument with GPS and Bluetooth® Low Energy technology for easy integration with external data capture devices. The SR-24LE’s intuitive mapping display shows the utility's estimated position, direction, and depth, while audio cues guide the operator over the utility. The omnidirectional antenna array captures the complete signal field, making it easy to acquire the signal and trace its path for greater speed and accuracy as the gradient antenna pair provides left/right guidance for centering over the signal. Already equipped with a SeekTeck 18V Battery Adapter, this locator is ready to power with a RIDGID 18V Lithium-Ion battery (not included) for long-lasting power in the field.
