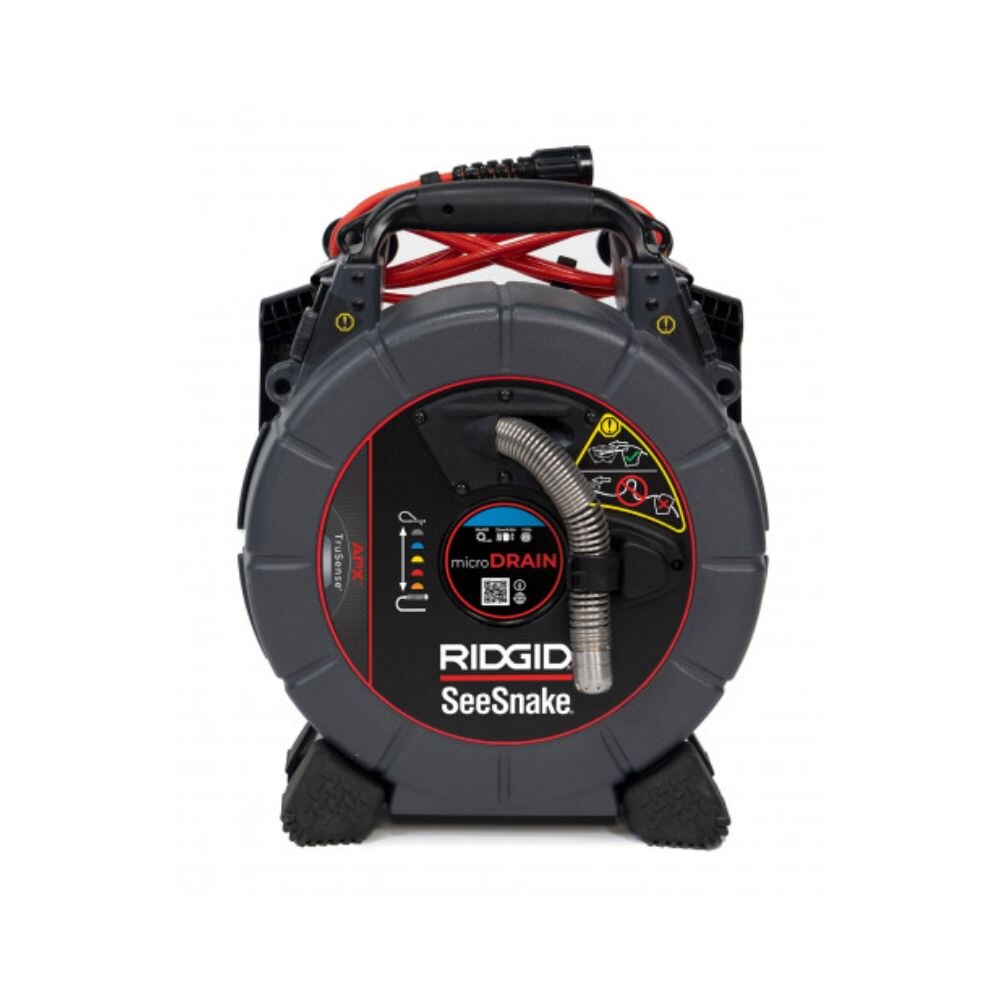

Ridgid 70023 SeeSnake MicroDRAIN APX with TruSense
WE DON'T HAVE ONE TODAY
But the next one could arrive anytime.
Join the release list and we'll email you when another Ridgid 70023 SeeSnake MicroDRAIN APX with TruSense becomes available.
Already have this tool? Sell It to WeBuyTools Today ›
Released in small batches
Inventory changes whenever WeBuyTools purchases another tool.
Our cost. Your price.
Members pay the same price WeBuyTools paid for the tool.
PRODUCT DETAILS
Make sure this is the exact tool you need.
Want to sell used Ridgid tools online? Get instant cash for Ridgid tools or sell your Ridgid gear in minutes with WeBuyTool.com.
INCLUDES:
• (1) Camera Reel
• (1) Kickstand
• (1) Interconnect Cable
• (1) Ball Guides
• (1) Spanner Wrench
FEATURES:
• Flexibility - High-flex push cable navigates tight turns and small diameter pipes - pass multiple 90° bends in most 1.5" (40 mm) drain lines.
• Enhanced Camera Functionality - APX camera reels offer TruSense technology with an HDR image sensor for superior in-pipe viewing and on-camera TiltSense inclinometer.
• Auto-Image Flip - Rotates camera image wihout any moving parts.
• Portability - Lightweight and compact design is one-half the size of popular inspection systems, easily stowed in a truck and carried onto the jobsite.
• Stability - Built-in kickstand for improved ergonomics can be used uprigt, at a 45 degree angle for improved leverage on four feet to provide clearance for use with CSx Via.
• Durability - Hardened stainless steel camera head and spring assembly is durable and reliable for a long service life.
• Visibility - Camera heads feature long-lasting high-efficiency LEDs that deliver better in-pipe visibility and higher color accuracy.
• Traceability - Integrated 512 Hz sonde allows for easy line tracing and locating.
• Versatility - Works with all SeeSnake monitors, including CSx Via Wi-Fi Hub, or the CA-350 inspection camera (CA-350 adpter sold serparately).
SPECIFICATIONS:
• Length: 13.3"
• Width: 8.8"
• Height 16.2"
• Drum Diameter: 12"
• Camera Length: 0.8" / 19 mm
• Camera Diameter: 0.87" / 22 mm
• Camera Light: 6 LED
• Resolution: 640 x 480 Pixels
• Frequency: 512 Hz
• Distance Measurement Type: TruSense Counter
• Data Communication: Two-Way
• Push Cable Length: 33'
• Push Cable Diameter: 0.33" / 8.3 mm
• Minimum Bend Radius: 0.75" / 19.1 mm
• System Cable Length: 10' / 3 m
• Pipe Capacity Min: 1.25" / 31.75 mm
• Pipe Capacity Max: 3" / 76.2 mm
• Color: Gray
• Material: Plastic, Stainless Steel
• Shape: Round
• Light Source: LED
• Min Operating Temperature: 32 F
• Max Operating Temperature: 115 F / 46.11111 C
• Weight: 11.6 lbs
The SeeSnake® microDRAIN APX™ is a portable and customizable diagnostic camera reel designed specifically for small pipes and conduits. It uses an advanced flexible push cable design and a proprietary small diameter camera, which allows camera inspection through very small diameter pipes, P-traps, and very small radius bends which conventional inspection systems often cannot inspect.
